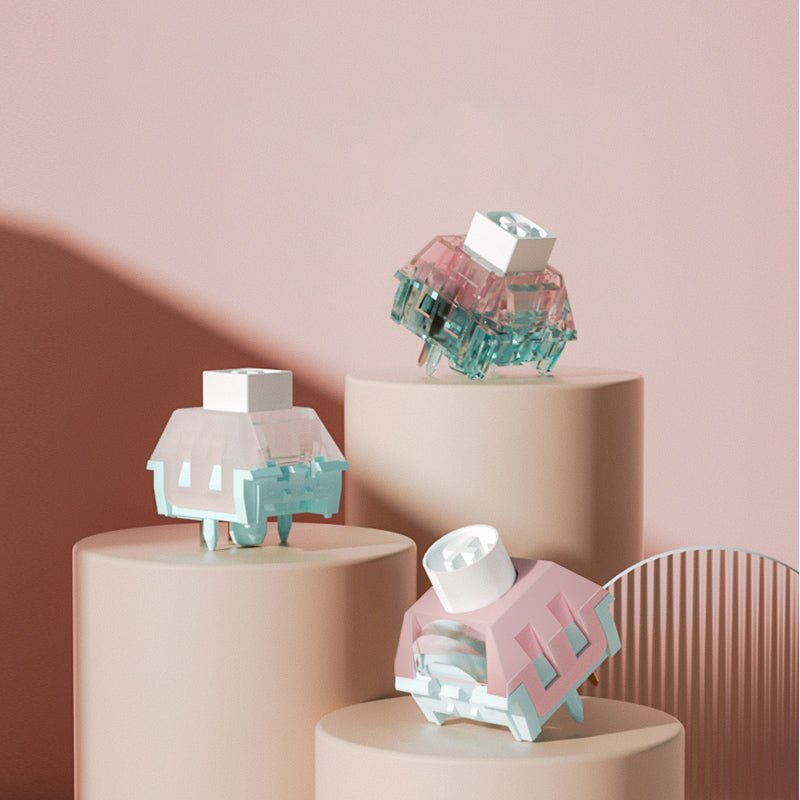

Kailh Box Marshmallow Switches

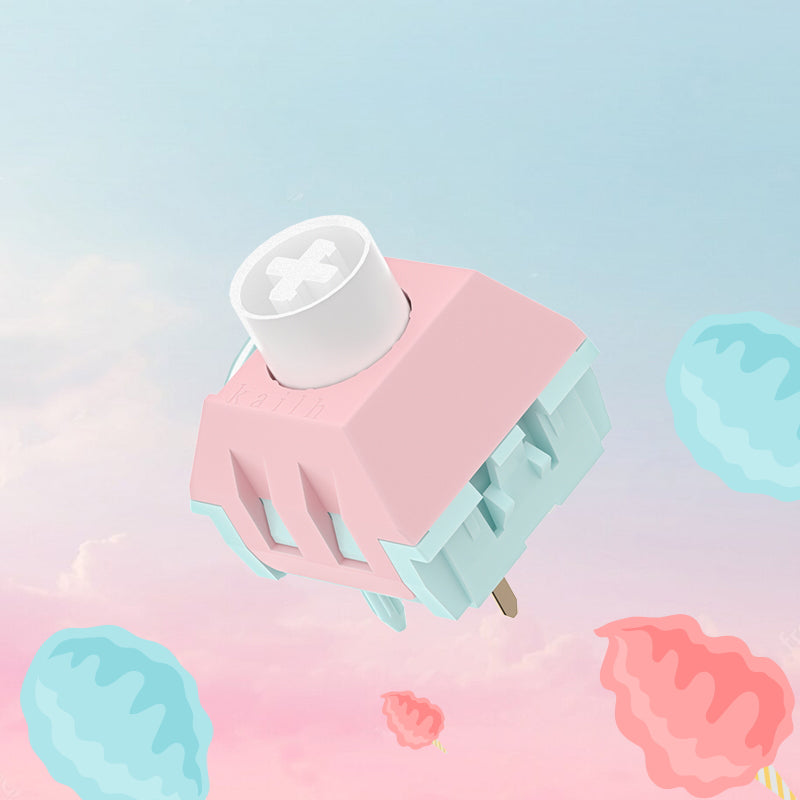

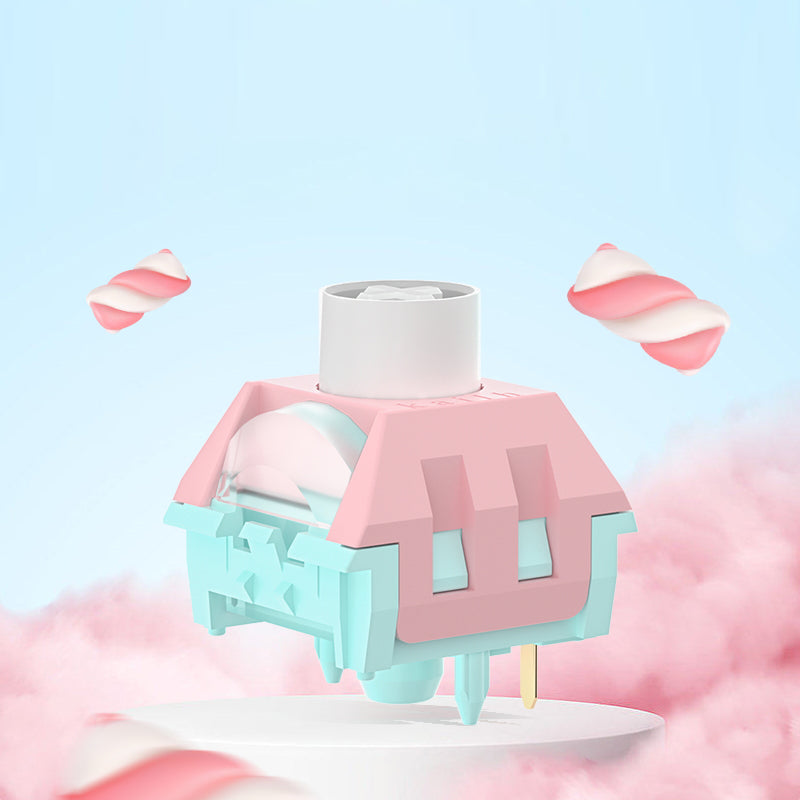

BOX Marshmallow Linear switch(POM material)
Operating force：39±10gf
Pre Travel:1.7±0.4mm
Total Travel:4.0±0.3mm

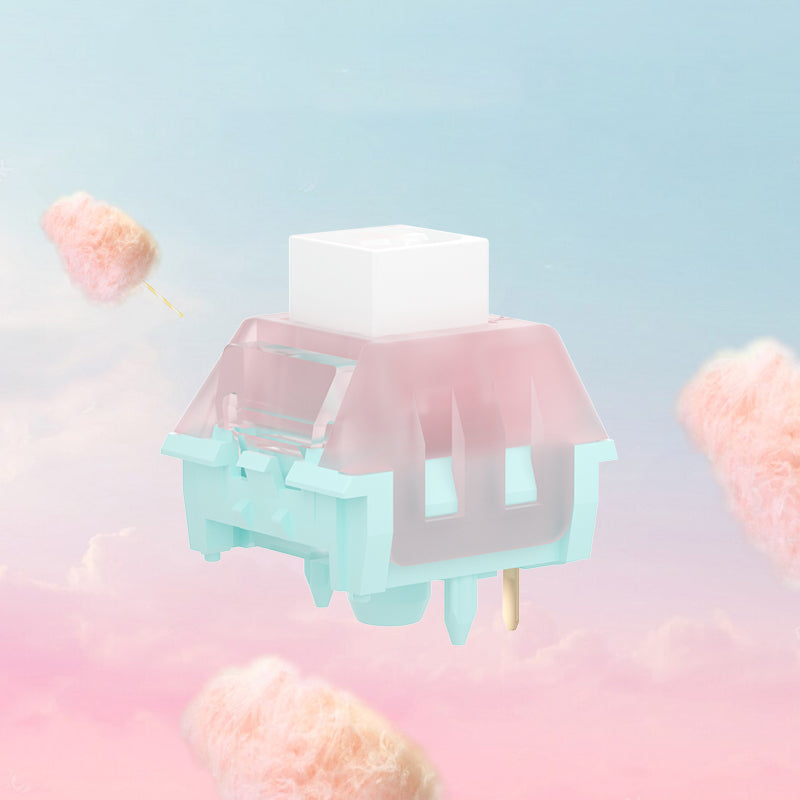

BOX Marshmallow Tactile switch(Translucent top cover)
Operating force：38±10gf
Pre Travel:2.0±0.4mm
Total Travel:3.4±0.3mm
Tactile Force: 55±10gf

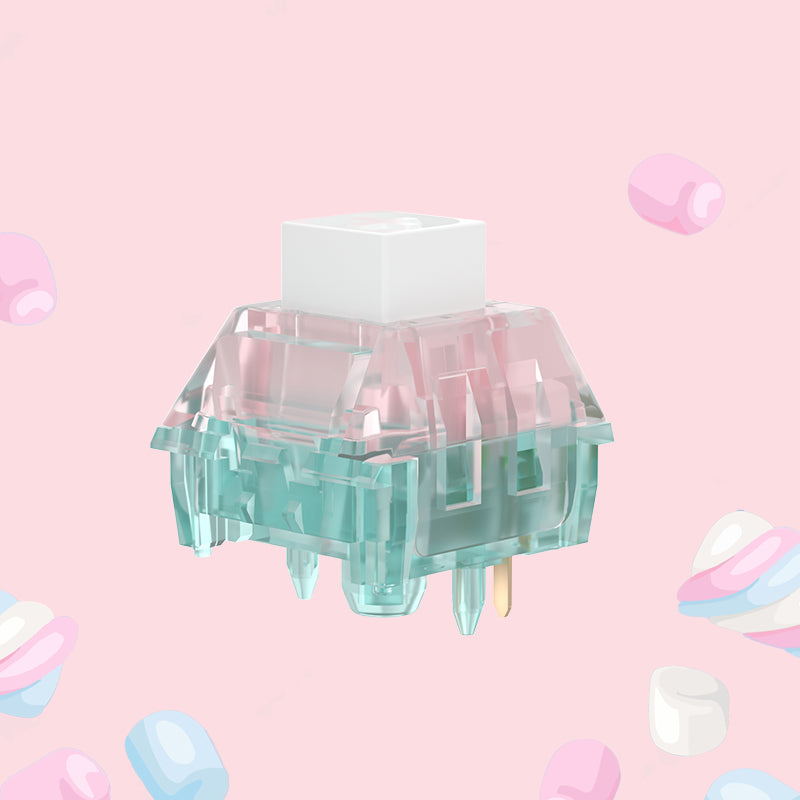

BOX Marshmallow Clicky Tactile switch  (PC transparent case)

Operating force：50±15gf
Pre Travel:1.8±0.4mm
Total Travel:3.6±0.3mm
Tactile Force: 55±15gf
